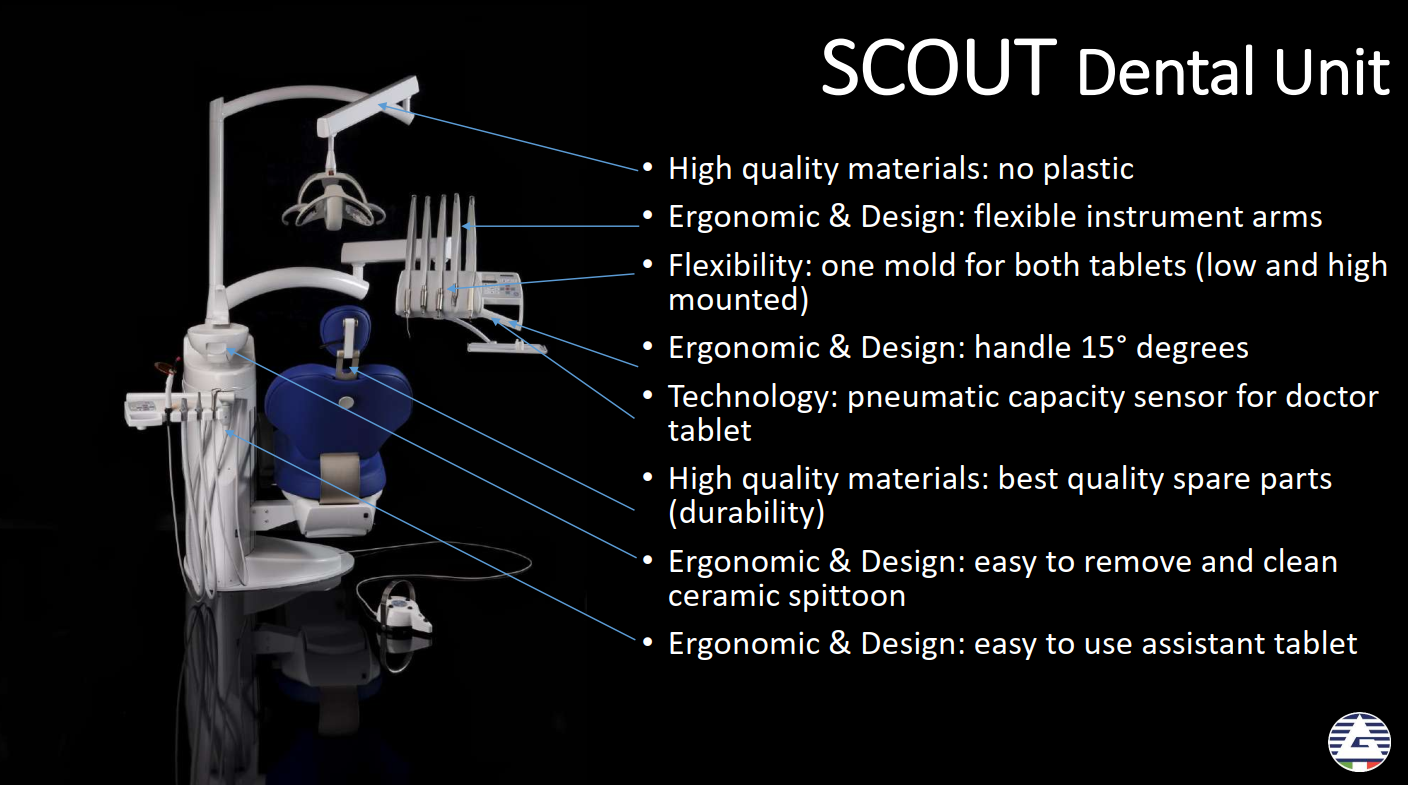

Scout dental equipment with lateral lift:
unique design, innovative performance, top of the line.
Technical features
TECHNICAL SPECIFICATIONS
Unit type: dental chair with lifting system, backrest, motors for chair movement, foot control.
Supply voltage: 100 v ac (US) – 230 v ac (EU)
Rated frequency: 50 hz / 60 hz
Maximum power: 50 hz 650 va
Inlet air pressure: 0.5 mpa
Atmospheric pressure: 70 kpa to 106 kpa
Inlet water pressure: 0.6 mpa
Water hardness: 8.4 dh to 12 dh
PERFORMANCE
Operational adjustment of instrument speed and power Reversing the operating speed of micro motors Adjusting the speed limit of micro motors (0-100%) Activating/deactivating instrument disinfection tubes
Inversion of the operating speed of the micro motors
Micro motor speed limit adjustment (0-100%)
Activation/deactivation of the instrument disinfection tubes
Activation/deactivation of the instrument disinfection tubes
4 seat memories
Activation/deactivation of tool cooling
Central vacuum system
Water supply system with 2 bottles (disinfection and distilled water)
ACCESSORIES
Suction systems
Suction-saliva
Hygiene:
Bottle of distilled water
Bottle of distilled water
Both systems
Doctor’s board control panel functions:
Spray adjustment of tools
Lighting tool on/off
Cleaning spray channels after using tools
Inversion of revolutions of the MM on/off
Giromatic function
Limit setting via control panel or foot pedal activation
Activation of the instrument disinfection program
Activation/deactivation of tumbler filling
Bowl rinsing function of the cuspidor unit
Seat safety stop function
Fiber optic tools on/off
Seat movement control function

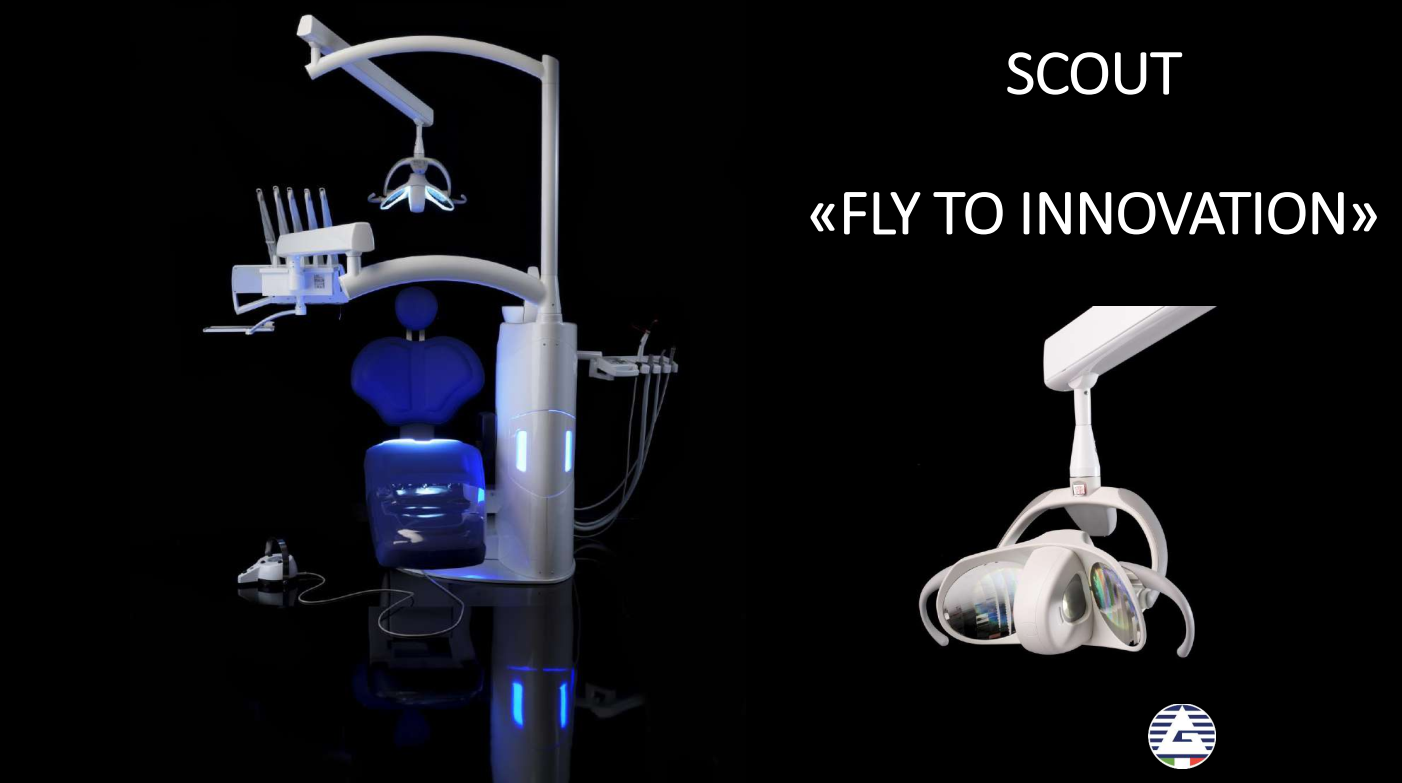

Scialitic lamps
Eva and Maia led Lighth
Doctor tablet types
Top mounted
Također, pogledajte i brošuru Galbiati SCOUT stomatološke jedinice
